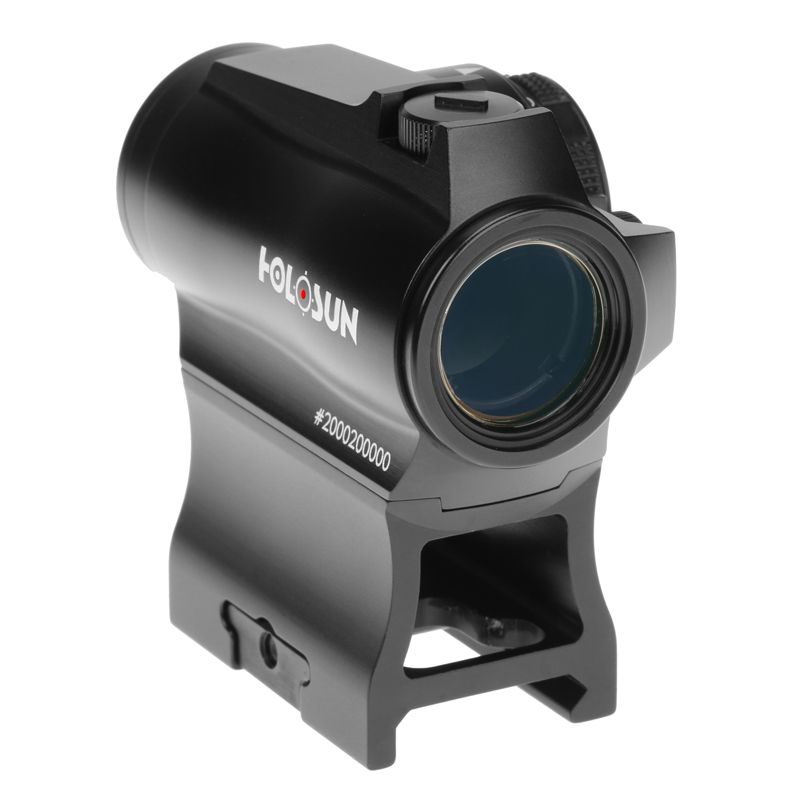

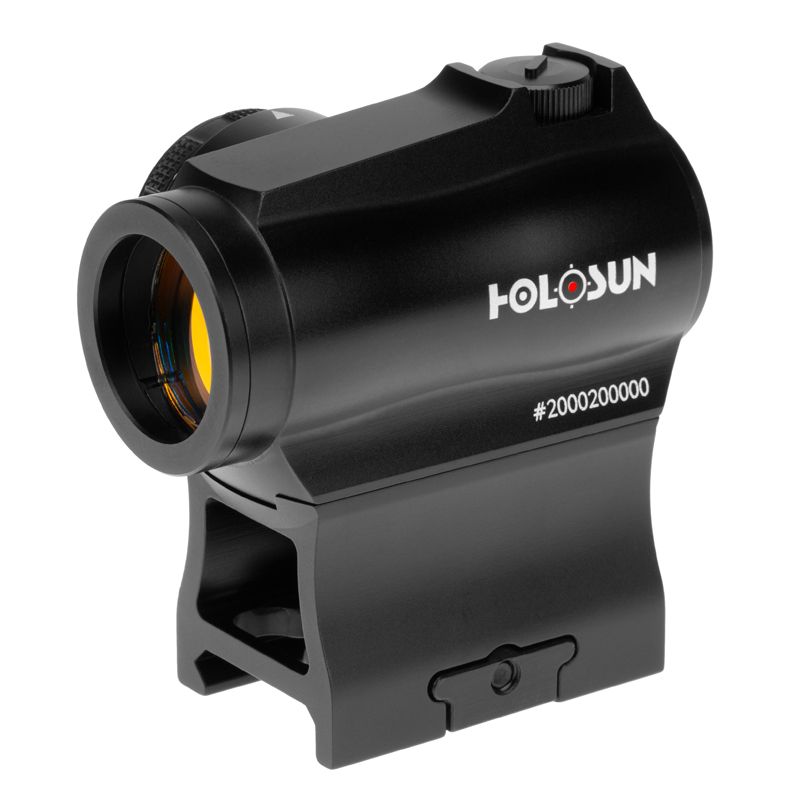

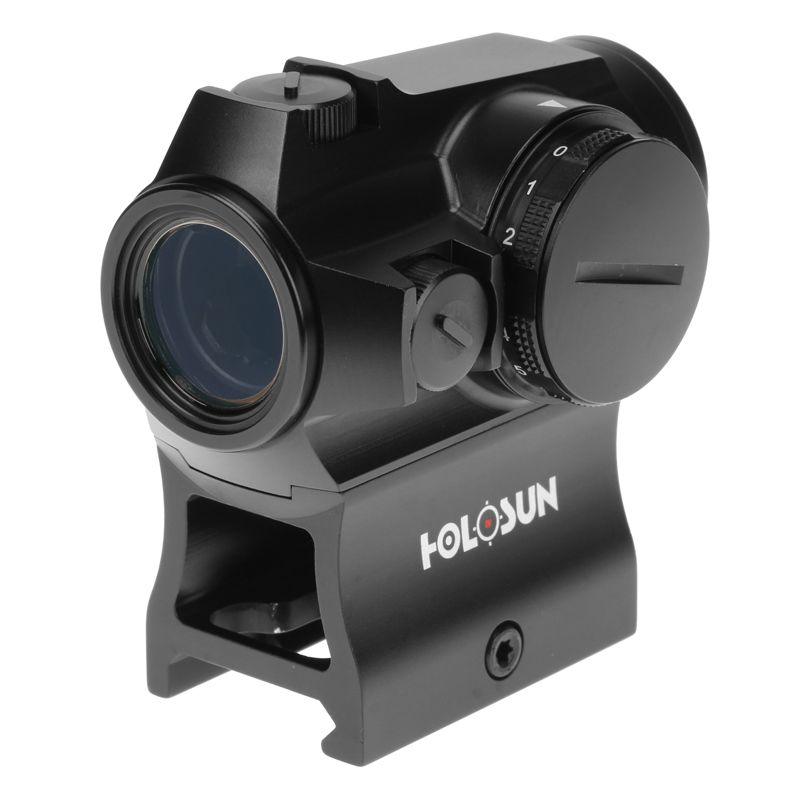

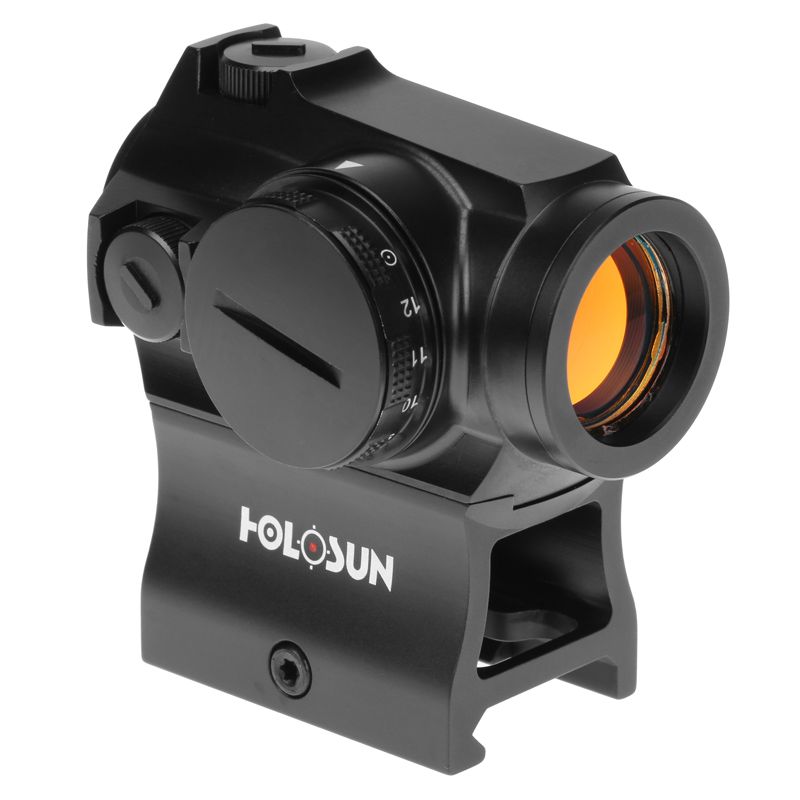

HE503R-GD for sale
The Holosun Rifle Sights-GD (Gold Dot) is a 20mm micro sight designed for rifle and carbine applications. HE503R-GD features a Rotary switch to select reticle intensity, Holosuns Gold Super LED with 50k hour battery life, and MRS (Multi-Reticle System) with 10 daylight and 2 night vision compatible reticle intensity settings.
The HE503R-GD housing is made from 6061 aluminum and includes both a lower 1/3 co-witness mount (1.63) and a low mount (.75) for low-comb height rifle applications. Additional features include rubber lens covers, and a battery compartment integrated into the Rotary switch for the 2032 battery. HE503R-GD is a versatile sight for users of all levels.
In the Box
- Lower 1/3 Cowitness Mount
- Low Profile Mount
- T10 L Key
- Rubber Cover
- User Manual
- CR2032 Battery
- Lens Cloth
Specifications
-
Multiple Reticle System -
Super LED -
Multilayer Reflective Glass
Multiple Reticle System
More Details
Super LED
More Details
Multilayer Reflective Glass
More Details
- Gold MRS:2 MOA Dot; 2 MOA Dot & 65 MOA Circle
- Up to 100,000 Hours Battery Life (Setting 6)
- 12 Brightness Setting: 10 DL & 2 NV Compatible
- Rotary Battery Compartment
- Parallax-free & Unlimited Eye Relief
PHYSICAL SPECS
| Window Size (in) | 20mm Diameter |
| Dimension (in) | 2.751.431.62 |
| Weight (oz) | 3.53 |
MECHANICAL SPECS
| Housing Material | 6061 T6 Aluminum |
| Surface Finish | MAO |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | 50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40~70 |
| Working Temperature | -30~60 |
| Submersion | IP67 |
| Vibration | 1000G |
